Introduction£º

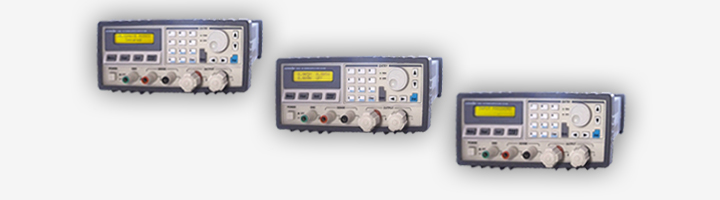

Array 366X series product, as the high-efficient programmable switching power supply, is characterized by low output
ripple and noise which rival traditional linear power supply. The dual lines LCD, full function keyboard and reliable
rotary knob make its operation quite convenient and speedy. Supporting the SCPI commands , equipped with RS232 and
GPIB interfaces, this series product is well suited for your design and test requirements.

Features£º
Provides CV and CC operating modes, switching automatically
The output voltage and output current are continuously adjustable from 0 to the maximum rating values

The maximum rating current can be achieved at 10mV. Equipped with SENSE terminals to compensate for the line loss

High power factor, high efficiency, wide line voltage range as well as low output ripple and noise
Multi-group setting parameters storage and recall
Robust, compact and convenient
SCPI (Standard Commands for Programmable Instruments) compatibility
Reliable input/output protections guarantee the effective operation in severe environment
  Specifications£º
Model
 3661A

3662A

3663A

3664A

 3665A
Output Ratings

Voltage

 0¡«20V

0 ¡«35V

0 ¡«80V

0 ¡«120V

0¡«200V

Current

 0¡«25A

0 ¡«14.5A

0 ¡«6.5A

0 ¡«4.2A

 0¡«2.5A
Ripple and Noise £¨20 Hz to 20 MHz£©
Voltage
 <3mVrms
<3mVrms
<5mVrms
<8mVrms
<20mVrms
<10mVp-p

<10mVp-p

<14mVp-p
<18mVp-p
<80mVp-p
Current
 <10mArms
<2mArms

500uArms

500uArms

<4mArms

Common Mode Current

 1.5mArms 1.5mArms 1.5mArms 1.5mArms 1.5mArms
Load Regulation
Voltage 3mV 5mV 10mV 10mV 10mV
Current 3mA 3mA 2mA 1mA 1mA
Line Regulation
Voltage 5mV 5mV 10mV 10mV 10mV
Current 3mA 3mA 2mA 1mA 1mA
Programming Accuracy
Voltage

0.03%+5mV
0.03%+5mV 0.03%+10mV

0.03%+15mV

0.03%+5mV

Current

 0.5%+8mA

0.5%+6mA

0.5%+5mA

 0.5%+5mA 0.5%+5mA
Readback Accuracy

Voltage

 0.02%+2mV

0.02%+2mV

0.02%+5mV

0.02%+8mV

 0.02%+2mV

Current

 0.2%+8mA

0.2%+5mA

0.2%+5mA

0.2%+5mA

 0.2%+5mA
Programming Resolution

Voltage

 1mV

1mV

1mV

1mV(@0-100V)
10mV(@100-
120V)

 1mV(@0-100V)
10mV(@100-
200V)

Current

 1mA
1mA

1mA
1mA
1mA

Readback Resolution

Voltage

 1mV
1mV

2mV

4mV

 4mV

Current

 1mV
1mA
1mA
1mA
1mA

Meter Resolution

Voltage

 1mV

1mV

 2mV

10mV

10mV

Current

 1mA
1mA

1mA
1mA
1mA

Output Programming Range£¨maximum programmable values£©

Voltage

 0¡«20.2V
0¡«35.2V
0¡«80.2V
0¡«120.2V
0¡«200.2V
Current
 0¡«25A

0¡«14.5A

0¡«6.5A

0¡«4.2A

0¡«2.5V
Temperature Coefficient, ¡À£¨% of output + offset£©
Maximum change in output/readback per ¡ãC afer a 30-minute warm-up
Voltage
 30ppm+ 0.5mV
30ppm + 0.5mV
30ppm+ 0.8mV
30ppm+ 1mV
30ppm+ 1.5mV
Current
 30ppm+ 0.5mV

30ppm + 0.2mA

30ppm+ 0.1mA

30ppm + 0.1mA

30ppm+ 0.1mV
Stability,¡À£¨% of output + offset£©
Following a 30-minute warm-up,change in output over 8 hours under constant load,line and ambient temperature

Voltage

 0.02% + 2mV
0.02% + 2mV
0.02% +3mV
0.02% + 4mV
0.02% + 5mV
Current
 0.2% + 8mA

0.1% + 6mA
0.05% + 3mA

0.05% +2mA

 0.02% + 2mV
Output Voltage Programming Response Time
Time for output to change from 10% to 90% of its total excursion(for resistive load).Command processing time is excluded
Full load up
50msec
50msec
50 msec
60msec
60msec
Full load down
50msec

50msec

50msec

60msec

60msec
No load up
50msec
50msec
50msec
60msec
60msec
No load down
200msec

200msec
300msec
300msec
500msec

Power Supply AC100V-240V 47Hz¡«63Hz 750VA Max

Operating Temperature 0¡«40¡æ 0¡«80%RH

Cooling Fan Cooled

Output Voltage Overshoot Less than 1V
Programming Language SCPI(Standard Commands for Programmable Instruments)
Net Weight 5.5kg
Dimensions 212.6mm(W)¡Á132.6mm(H)¡Á360mm(D) (8.4¡Á5.2¡Á14.2 inch)
