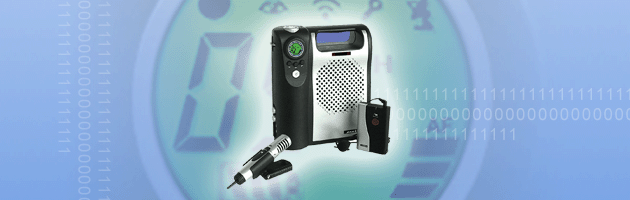

Location: ]RF]Product Information]AU210



Main Features:
    UHF system, 700-960MHz professional frequency
    PLL synthesized design, 32 selectable channels
    Auto-setting the TX channel by IR communication
    Built-in switching power of large power and accumulator battery of large capacity,
       suitable for all kinds of situations
    Auto-scanning channel to ensure the channel interference free
    Digital pilotone & noise cancellation technology, reduce interfering noise.
    Receiver adopting the internal antenna.
    Convenient for either shoulder-hanging, handheld or placing on the desk
    Audio output being able to be connected with larger speaker for better result.
    Advanced SMT to ensure the quality.
    Multi-receivers of the same channel can be used simultaneous to enlarge the volume
    Using ordinary or rechargeable battery ^AA ̄ size, one unit for handheld
       transmitter and two units for body-pack transmitter
    RF/AF level, channel & TX/RX battery capacitor being shown in LCD

Main Specifications:
       Receiver AUR210


Power Supply

Internal Rechargeable Battery DC: 12V 1.9Ah
Universal AC Power: 100-240V 50Hz-60Hz
Usable Channel
32 Channels
Frequency Range
745-754.3MHz
Frequency Control
PLL Synthesized
AF Output Power
20WRMS 4Ω
AF Response
50Hz-16KHz\3db
Sensitivity
10dBu
DimensionsWXHXD
205mmX240mmX90mm

Weight

2.6KgIncluding the batteries

      Transmitter: AUH210


Power Supply

1X1.5V AA
RF Output Power
10mW
Harmonic
>50dB
Battery Life
About 12 hours
Dimensions
φ26mmX128mm
Weight
55g Excluding the battery

      TransmitterAUT210


Power Supply

2X1.5V AA
RF Output Power
10mW
Harmonic
>50dB
Battery Life
About 25 hours
Dimensions
66mmX23mmX91mm
Weight
80gExcluding the battery
Main Applications:
 Amplifying for the teaching inside or outside classroom.
 Amplifying for the interpretation for outside activities and picnics.
 Amplifying for sales promotion, propaganda and popular activities of commercial enterprise
 Amplifying for the lectures or the congregations inside or outside.
 Amplifying for the interpretation in the exhibition, direction of the traffic,
   activities of communities

In large hall and square, you can use one transmitter together with multi-receivers of the
same channel to broadcast the voice.
