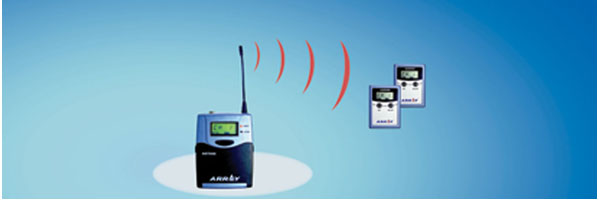

Location: ]RF]Product Information]AG500


Main Features:
  Portable, exquisite, stylish and user-friendly streamline design
  Adopting UHF system and 700-960MHz professional frequency with high anti-interference
  PLL synthesized design, with high frequency stability
  Digital pilotone & noise cancel technology, interfering voice ellimination
  White backlit LCD displays operation menu and status clearly
  The receiver or the transmitter can be placed in the charging case to get the rechargeable
    batteries charged
  Automatic power off when the battery is low to protect the battery life
  Setting key lock mode allows you to avoid accidental triggering key operation
  Advanced frequency group allows several groups to use this system simultaneously on the
   same occasion
  External microphone input jack can input audio source, such as CD, MP3 to realize music
   sharing, and also can input the electronic tour guide recording
 Being able to be used in one-to-one and one to multiple system, the number of the receivers
   can be unlimitedly expanded according to the need
 Being able to be used in simultaneous interpretation, portable camera, wireless microphone
   system, wireless earphone and so on situations
Main Specifications:
      Transmitter AGT500


Power Supply

2X1.5V AA
Operating Frequency
854MHz-865MHz
RF Output Power
10mW
Frequency Response
100Hz-12KHz
Distortion <1%
Battery Life >12 hoursBattery capacity of 2400mAh
Dimensions
82mmX62mmX21mm
Weight 73gExcluding the batteries
Environmental Temperature
-20-60≧

      Receiver AGR500


Power Supply

800mAh Lithium-ion rechargeable
Number of Channels
6+N
Sensitivity
10dBu
EffectiveRange
>70m
Frequency Response 100Hz-12KHz
Distortion
<1%
Battery Life
>10 hours
Dimensions
68mmX50mmX15mm
Weight
54gincluding battery

     Battery Charger AG500-C



Charging Time of batteries fully charged
About 8 hoursBattery capacity of 2400mAh
Number of charging slots
26
Dimensions 45cmX26cmX13cm

Main Applications
   Widely used in touring, visiting and studying activities of the touring and training groups
   Used in reception of visitants in product presentation, advanced exhibition of large companies
   Used in meeting and teaching of school and so on.
   Movable wireless simultaneous interpretation system
   Wireless microphone
   Wireless earphone
   Combination of the portable video camera and wireless microphone.
   Wireless monitor of the performance: especially used for the acting singer to monitor the
     accompaniment



Impregnable Interpretation
Exhibition
Museum
School




Interpretation without
interference
Crowded Square
Noisy Factory
Outside Activities

Suggested System:
  24-Person Tour Guide System (One to multiple system)
   --Transmitter AGT500 2
  -Headset Microphone HM02 2
  -Receiver AGR500 24
  -Earphone PH01 24



-Battery Charger AG500-C 1

Selectable Accessories:

Suitcase SC02
Headset Microphone
Earphone 1 PH01
Earphone 2 PH02
Waistband WB01

HM02
