Main Features:
 UHF system, 700-960MHZ professional frequency
 PLL synthesized design, with high frequency stability
 Digital pilotone & noise cancel technology, interfering voice ellimination
 Three randomly selectable channels, completedly avoid the interference of the same frequency
 Audio input for external connecttion to audio inputs, such as CD, MP3 and so on share the
    music for everybody. Also digital tour guide recording can be played.
 Using ordinary or rechargeable battery “AA” and the batteries can last for more than twenty hours
 LED automatic display when battery of the transmitter or the receiver is low.
    Also the receiver has the receiving LED automatic displaying function
 In the same location, three different groups can used this system simultaneously
 Being able to be used in one-to-one and one to multiple system, the number of the receivers can
    be unlimitedly expanded according to the need
 Being able to be used in simultaneous interpretation, portable camera, wireless microphone
    system, wireless earphone and so on situations
Main Specifications:
      Transmitter AGT300


Power Supply

2X1.5V AA
Operating Frequency
CH1 751.6MHz
CH2 752.2MHz
CH3 752.8MHz
RF Output Power
10mW
Harmonic
>50dB
Battery Life

About 25 hour(attery capacity of 2400mAh )

Dimensions
60mmX91mmX23mm
Weight
80g(Excluding the batteries)

      Transmitter AGH300


Power Supply

1X1.5V AA
Operating Frequency
CH1 751.6MHz
CH2 752.2MHz
CH3 752.8MHz
RF Output Power
10mW
Harmonic
>50dB
Battery Life

About 12 hour(attery capacity of 2400mAh )

Dimensions
φ26mmX128mm
Weight
55g(Excluding the batteries)

      Receiver AGR300


Power Supply

2X1.5V AA
Operating Frequency
CH1 751.6MHz
CH2 752.2MHz
CH3 752.8MHz
Available Distance
>50m
Battery Life

About 25 hours(Battery capacity of 2400mAh)

Dimensions
60mmX91mmX23mm
Weight
80g(Excluding the batteries)
Main Applications:
   Widely used in touring, visiting and studying activities of the touring and training groups
   Used in reception of visitants in product presentation, advanced exhibition of large companies
   Used in meeting and teaching of school and so on.
   Movable wireless simultaneous interpretation system
   Wireless microphone
   Wireless earphone
   Combination of the portable video camera and wireless microphone.
   Wireless monitor of the performance: especially used for the acting singer to monitor the
     accompaniment



Impregnable Interpretation
Exhibition
Museum
School




Interpretation without
interference
Crowded Square
Noisy Factory
Outside Activities

Suggested System:
  A. Personal Portable System (One-to-one system)
   Transmitter AGT300 1
   Headset Microphone HM01 1
   Receiver AGR300 1
   Earphone PH01 1

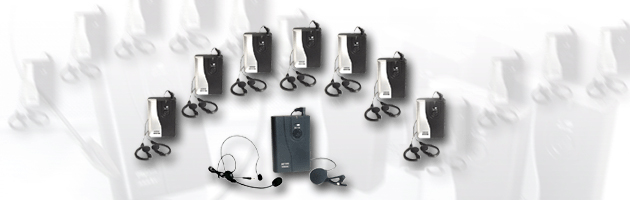

  B. 20-Person Tour Guide System (One to multiple system)
   Transmitter AGT300 1
   Headset Microphone HM01 1
   Receiver AGR300 20
   Earphone PH01 20
   Suitcase SC01 1
Selectable Accessories:

Suitcase SC01
Headset Microphone
Earphone 1 PH01
Earphone 2 PH02
Waistband WB01

HM01
