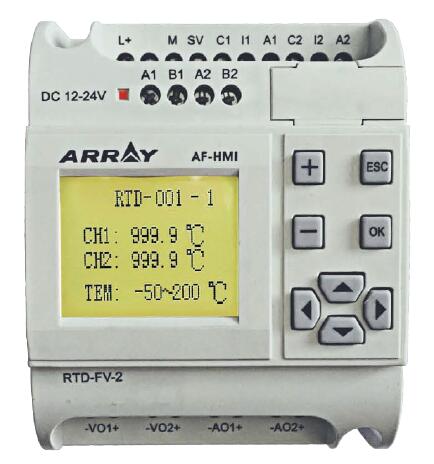

Temperature Module

Features:

Password protection

Add power indicator
Improve analog accuracy

Improve RTC accuracy

Improve PLC running speed
2 channels with 485 interface and 1 channel with the

programing interface

Support ARRAY Text Panel(SH300)
Support the standard Modbus RTU protocol(only read)




Technical Parameters

Power section

Input power

DC12-24V

Input power range

Rated voltage 85%~110%

Power consumption

<5W

Input section

Input temperature sensor

Thermal resistance PT100

Sampling period

200ms

Channel range

-200°C-850°C

Display method

LCD DISPLAY£¨show current temperature value

Display scale

One decimal place

Accuracy

±0.2%

Output section

Output Type

Current output 4-20mA, two channels

Voltage output DC2-10V£¨two channels

Other

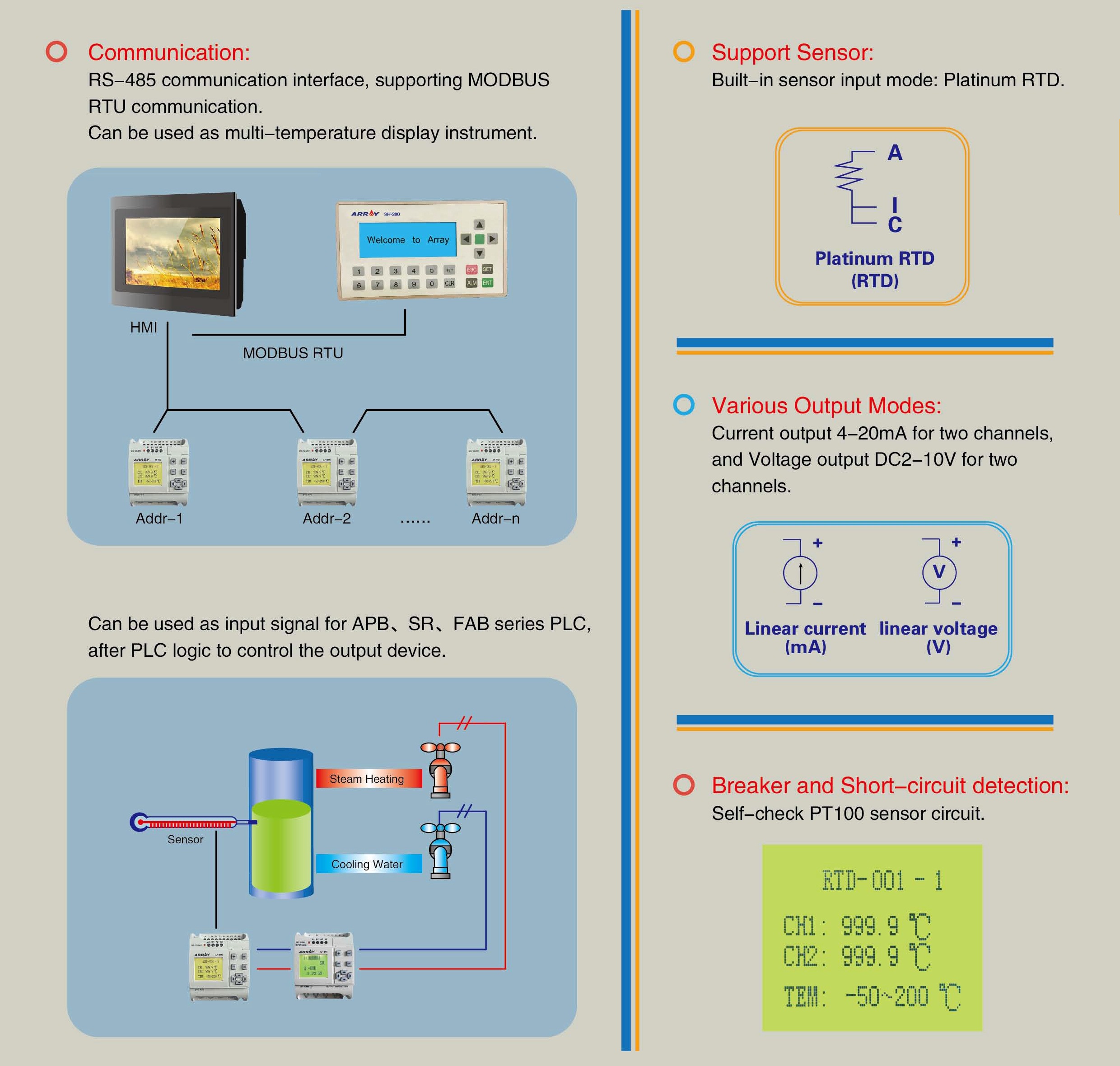

Communication

RS485 communication interface£¨9600bps-115000bps transmission speed

Communication protocol

Standard Modbus RTU communication protocol

Vibration resistance

10-55Hz 10m/s2

3 axis direction 10min

Impact resistance

Maximum 300m/s2

3 axis 6 direction 3 times each

Operating temperature

0°C-50°C

Operating environment humidity

35% to 85%RH(No condensation)

Storage environment temperature

-20°C-65°C

Waterproof grade of Panel

IP20

Feature

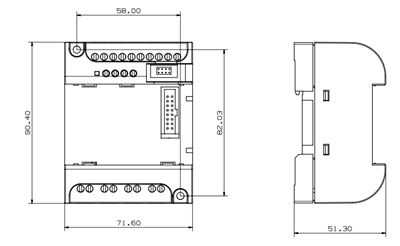

Dimensions





Type

Dimensions(mm)

RTD series

71.6*90.4*51.3
