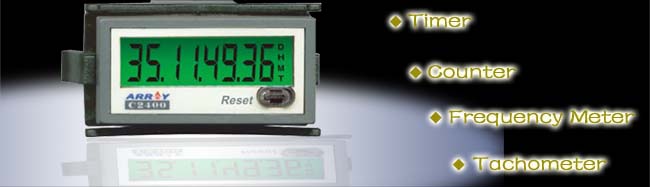

8-digit high resolution LCD(8mm high)
▲
Manual Reset& External Reset
▲

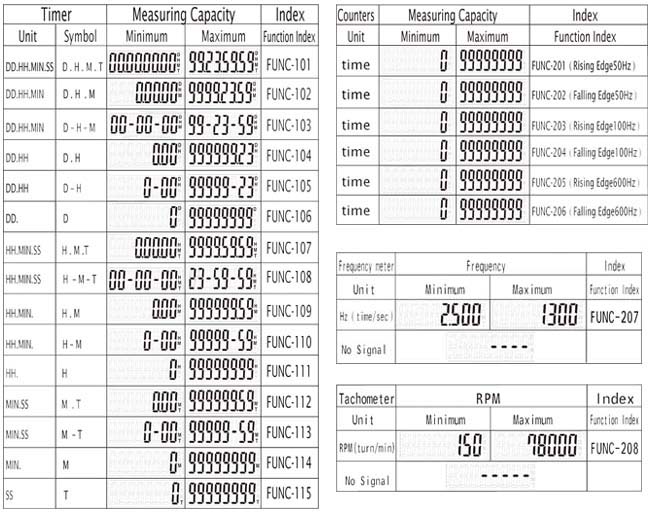

23 functions(15 Timer functions,6 Counter functions,
Frequency Meter &Tachometer)
▲Unique battery cover design for easy battery replacement
▲Programable Reset button to prevent wrong-button push
Model
C2400
Size
48×24×45.7(Unit:MM)
Timer range
0-99999999(the setting unit is S)
Counter range
0-99999999
Response frequency
2.5Hz~1300Hz
RPM range
150~78000
(unit: Round per minuter)
Power Supply
CR2
850mAh
(
23
± 3 ℃
constant current 10mA
continuous
discharge to the termination
voltage 2.0V)
Operation temperature
-10℃~55℃
Screw type
M3
Front panel
waterproof
protection
IP66
Rear panel
waterproof
protection
IP20
Vibration
IEC60068-2-6
Static discharge
IEC1000-4-2(4KV Air/2KV contact)
Electromagnetic field
IEC1000-4-3(field strength 10V/m, frequencyMHz~1GMHz)
Shock pulse
IEC1000-4-4(1KV input)
Weight
about 33g

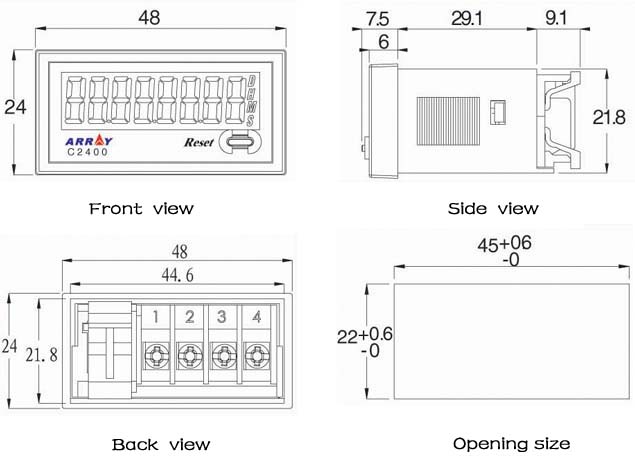

Opening size
45×22(unit:MM)
Note:

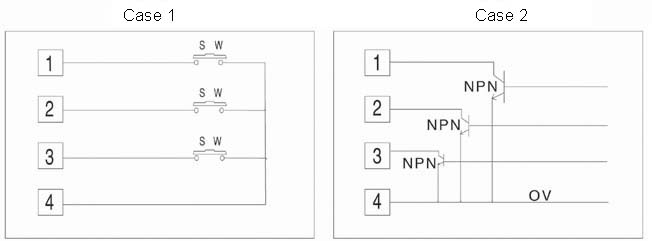

(1-external reset terminal;2-Reset button Enable/Disable Terminal;3-signal input terminal;4-Common line)
