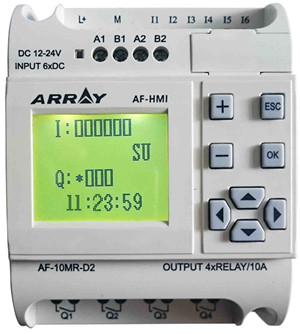

FAB2 Series PLC

Features:

Password protection

Add power indicator
Improve analog accuracy

Improve RTC accuracy

Improve PLC running speed
2 channels with 485 interface and 1 channel with the

programing interface

Support ARRAY Text Panel(SH300)
Support the standard Modbus RTU protocol(only read)




Technical Parameters

Item

AF-10MR-A2

AF-10MR-D2

AF-10MR-E2

AF-10MT-D2

AF-10MT-GD2

AF-10MT-E2
AF-20MR-A2
AF-20MR-D2
AF-20MR-E2
AF-20MT-D2
AF-20MT-GD2
AF-20MT-E2

Surge Immunity

  2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5)

Electrostatic Discharge (outer casing)

  \8kv(air discharge)/\6kv(contact discharge), Level 3 (IEC61000-4-5)

Ambient Temperature

 -10≧゛+55≧

Storage Temperature

 -40≧゛+70≧

Ambient Humidity

 5%゛95%RH

Degree of Protection

  IP20(Non-waterproof)

Installation

  Fixing with M3 screws or Standard DIN rail mounting

Dimensions (mm)

 71.6*90.4*51.3(10 points)126.4*90.4*51.3(20 points)

Programming Language

 FBD

Points

  10 points/20 points

Memory Capacity

 127 FBDs

Real-time Clock

  160h

Password Protection

 yes

Analog Operation

  At most 12 channels with DC 0-10V voltage

Simulate Monitoring

  Yes

Communication Interface

  support 2 channel with RS485 and 1 channel with program interfaces

Baud Rate

 9600bps/19200bps

Communication Protocol

 Self-defined protocol/MODBUS RTU protocol (only read)

Power Supply

Rated Voltage

AC100-240V

DC12-24V

AC/DC12-24V

DC12-24V

DC12-24V

DC12-24V

Permissible Range

DC85-260V

DC10-28V

AC/DC10-28V

DC10-28V

DC10-28V

DC10-28V

Power Consumption

<10w
<7w
<7w
<2w
<2w
<2w

Digital Input

Input Type

NPN/PNP

NPN/PNP

NPN/PNP

NPN/PNP

NPN/PNP

NPN/PNP

Input Signal 0

AC0-40V

DC0-5V

AC/DC0-5V

DC0-5V

DC0-5V

DC0-5V

Input Signal 1

AC80-240V

DC10-24V

AC/DC10-24V

DC10-24V

DC10-24V

DC10-24V

Isolation

Photoelectric isolation

--

-- --

--

--

Isolated Group

6/12 groups

Isolated Voltage

2500/5000Vr.m.s

Digital Output

Output Type

Relay

Relay

Relay

Transistor(NPN)

Transistor(PNP)

Transistor(NPN)

Isolation Method

Relay isolation

Relay isolation

Relay isolation

-

-

-

Analog Input

Input Type

--

(DC0-10V)/6 inputs

--

(DC0-10V)/6 inputs

(4-20mA)/2 inputs

--
(DC0-10V)/12 inputs
(DC0-10V)/12 inputs
(DC0-10V)/12 inputs
Type

AF-10MR-A2

AC100V-240V

6 points digital input

4 points relay output

AF-10MR-D2

DC12V-24V

6 points digital input (can be used as analog inputs)

4 points relay output

AF-10MR-E2

AC/DC12V-24V

6 points digital input

4 points relay output

AF-10MT-D2

DC12V-24V

6 points digital input (can be used as analog inputs)

4 points NPN transistor output

AF-10MT-GD2

DC12V-24V

6 points digital input (can be used as analog inputs)

4 points PNP transistor output



AF-10MT-E2

DC12V-24V

6 points digital input

4 points NPN transistor output

AF-20MR-A2

AC100V-240V

12 points digital input

8 points relay output

AF-20MR-D2

DC12V-24V

12 points digital input (can be used as analog inputs)

8 points relay output

AF-20MR-E2

AC/DC12V-24V

12 points digital input

8 points relay output

AF-20MT-D2

DC12V-24V

12 points digital input (can be used as analog inputs)

8 points NPN transistor output

AF-20MT-GD2

DC12V-24V

12 points digital input (can be used as analog inputs)

8 points PNP transistor output



AF-20MT-E2

DC12V-24V

12 points digital input

8 points NPN transistor output

Auxiliary Module

AF-2322

the cable is used to read/write the program by PC 232 port

AF-DUSB2

the cable is used to read/write the program by PC USB port

AF-HMI

The removable LCD panel


Dimensions

Take the 10 points module as an example. The 20 points modules share the same width and height, the only one difference exists in the length.



Type

Dimensions(mm)

10 points main module

71.6*90.4*51.3

20 points main module

126.4*90.4*51.3
